HDMI switch

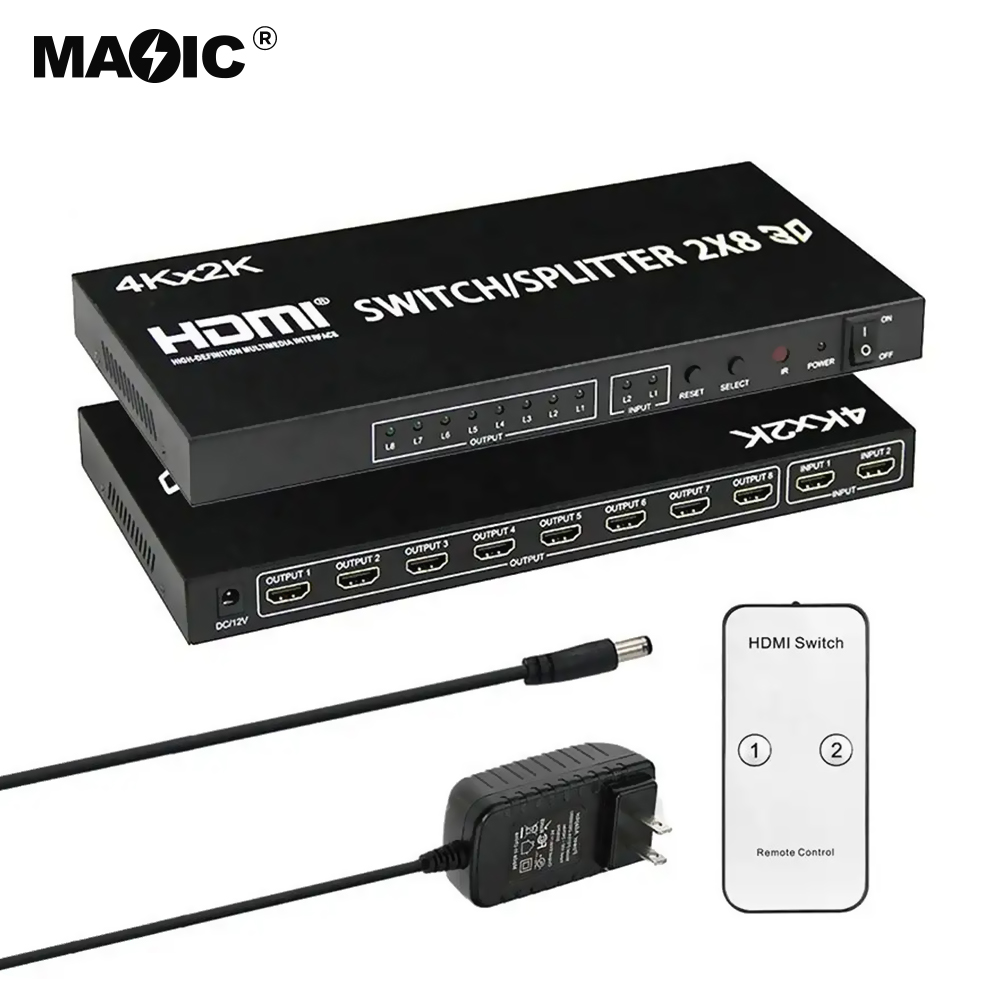

2×8 HDMI Switcher Splitter can connect two HD signal sources with two HD display terminals, it allows you to split two HDMI signals or switch them to two HDMI compatible monitors or projectors.
The HDMI cable connects to the HDMI output, the 2×8 splitter can amplify the HDMI signal; Supports the highest video resolutions 1080p/60Hz, HDMI1.4a, 3D, 4KX2K.
Compatible with fully compliant HDMI 1.3/1.4 specifications. Simultaneously buffer HDMI signals, HDMI or DVI-HDMI cables used for inputs and outputs.
Includes IR remote control for flexible operation and easy control, no manual selection button required.
Support single high definition display and multiple HD output sources such as DVD players, A/V receivers and set-top boxes, 360 Sky Box Freesat Virgin Bluray Player DVD HDTV projector camcorder HTPC laptop.
Features
Automated separation to the highest resolution, EDID/CEC support.
Supports the highest video resolution 1920x1080P/60Hz; 3840×2160 / 30 Hz.
Supports Blu-ray, Full HD/HD 3D.
Supports 3.4 Gbps data rate and TMDS frequency up to 340 MHz.
Support standard HDMI cable AWG26, input up to 15 meters, output up to 25 meters (resolution ≤ 1080p).
Support standard HDMI cable AWG26, input up to 12 meters, output up to 15 meters (resolution: 4k).
Audio format support: DTS-HD/ Dolby-trueHD/ DTS/ Dolby-AC3/ DSD.
Specifications
HDMI Input Port: 2
HDMI Output Port: 8
Maximum Operating Current: 500mA
Power Adapter Input Format: AC (50Hz, 60Hz) 100-240V
Power Adapter Input Format: DC5V/1A
Operating Temperature Range: (from -15 to +55)
Dimensions (L x W x H): 276 x 135 x 24 (mm) / 8.3 x 4.1 x 0.7 (in)
Package weight: 970 g
Package Includes
1. HDMI 2X8 Switch/Splitter
2. IR Remote Control (No Battery)
3. 5V DC Power Adapter
4. User Manual
