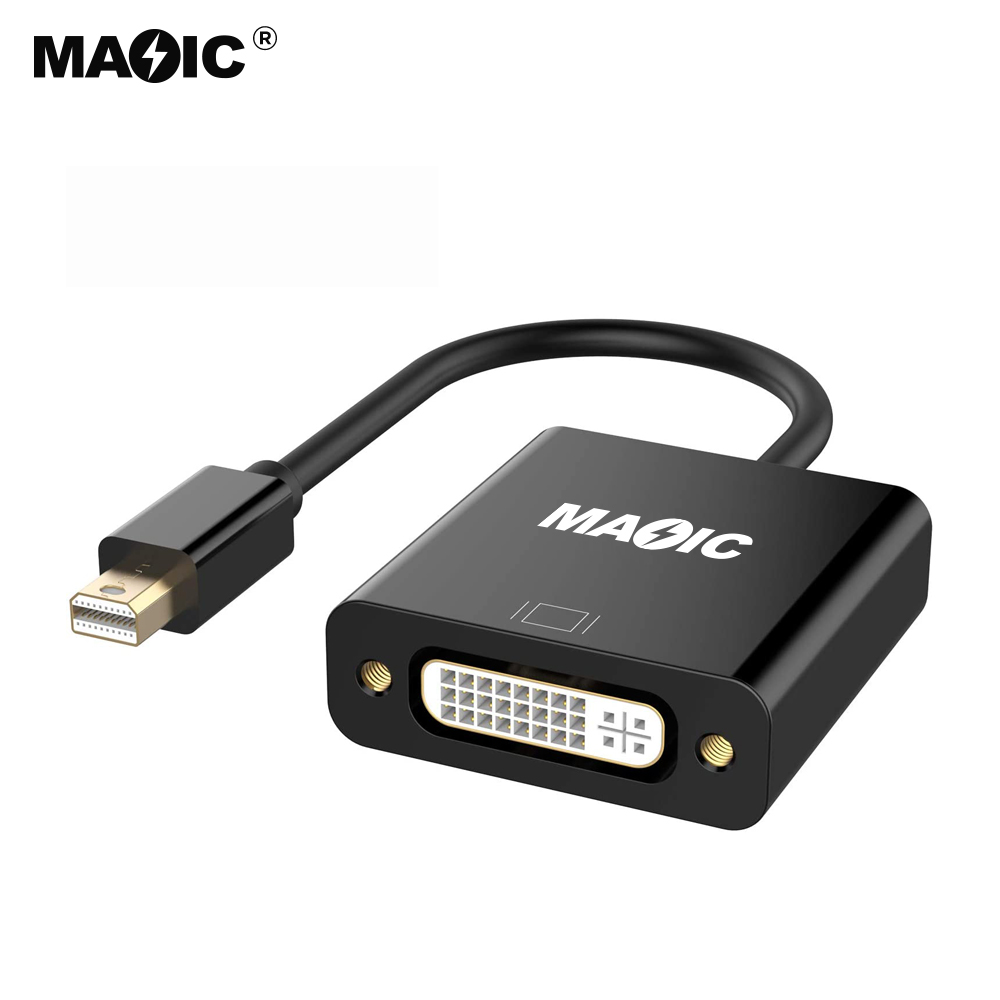

Category: Mini DP to DVI connector

Colors: White, Black

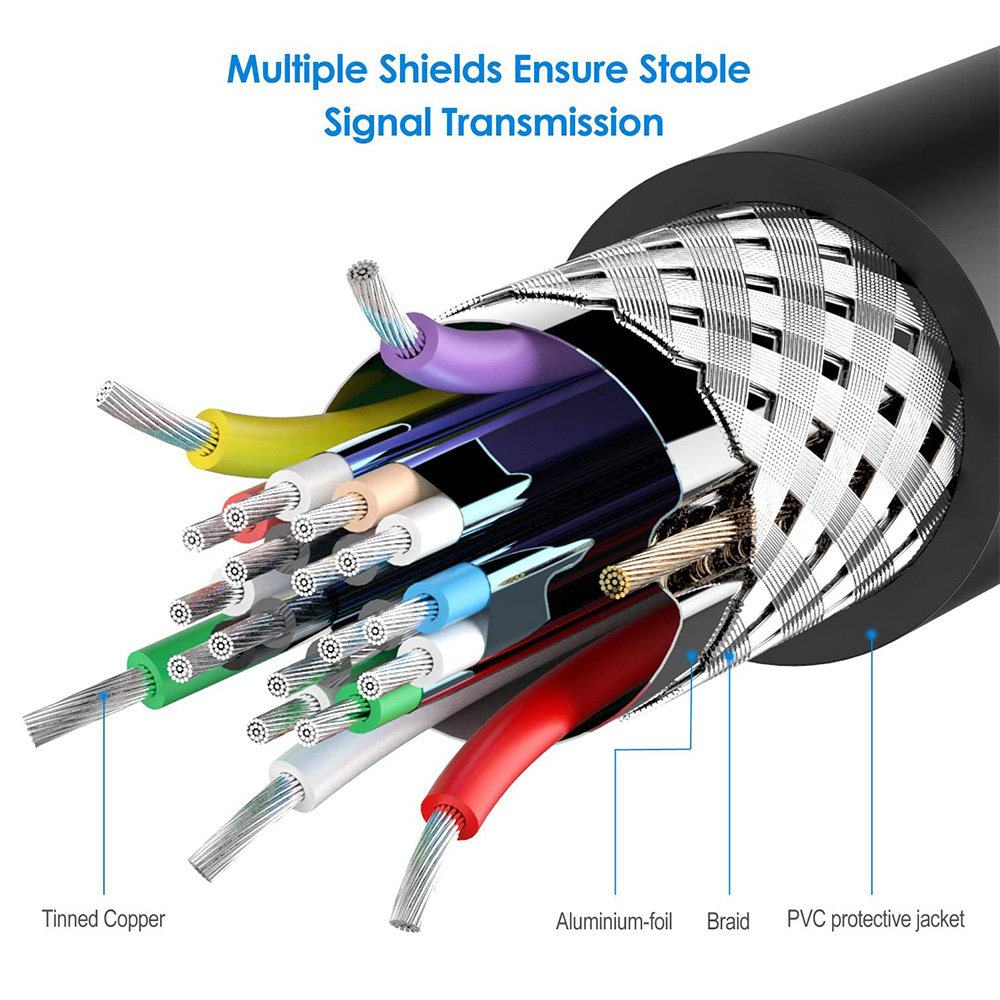

Material: tinned copper and aluminum housing, terminal gold plated

Weight: 0.075g Length: 20cm Version: V1.1

Applications:

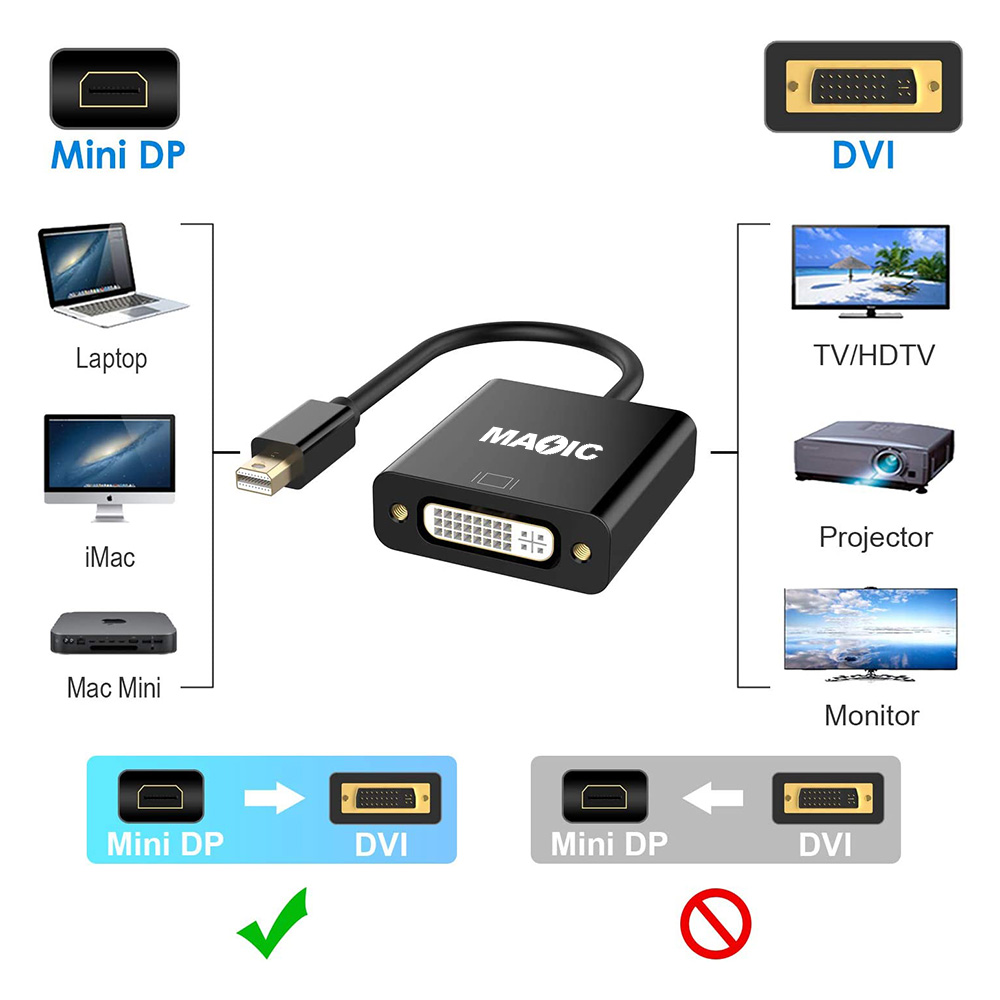

1. Product Applicable: Support all Apple computers and PC graphics cards with Mini displayport interface.

2. Uses: For Apple’s new Macbook with minidisplay interface, maccbook pro, maccbook air, Mac mini and new graphics card with minidisplay interface, video output interface for MacBook and PowerBook, the output of this device It is a DVI interface, so it can only output video signals. If you need audio output, you need to use another audio output device.

Details:

1. Mini DisplayPort provides a unified, scalable and cost-effective interface for embedded and external display applications. It not only has a beautiful white color, but also brings a lot of convenient small size;

2. Using the Mini Displayport to DVI conversion cable, you can directly output the mini DVI interface on the latest notebook to the external standard display device such as DVI projector, TV, monitor, etc., enjoy the pleasure brought by high definition.

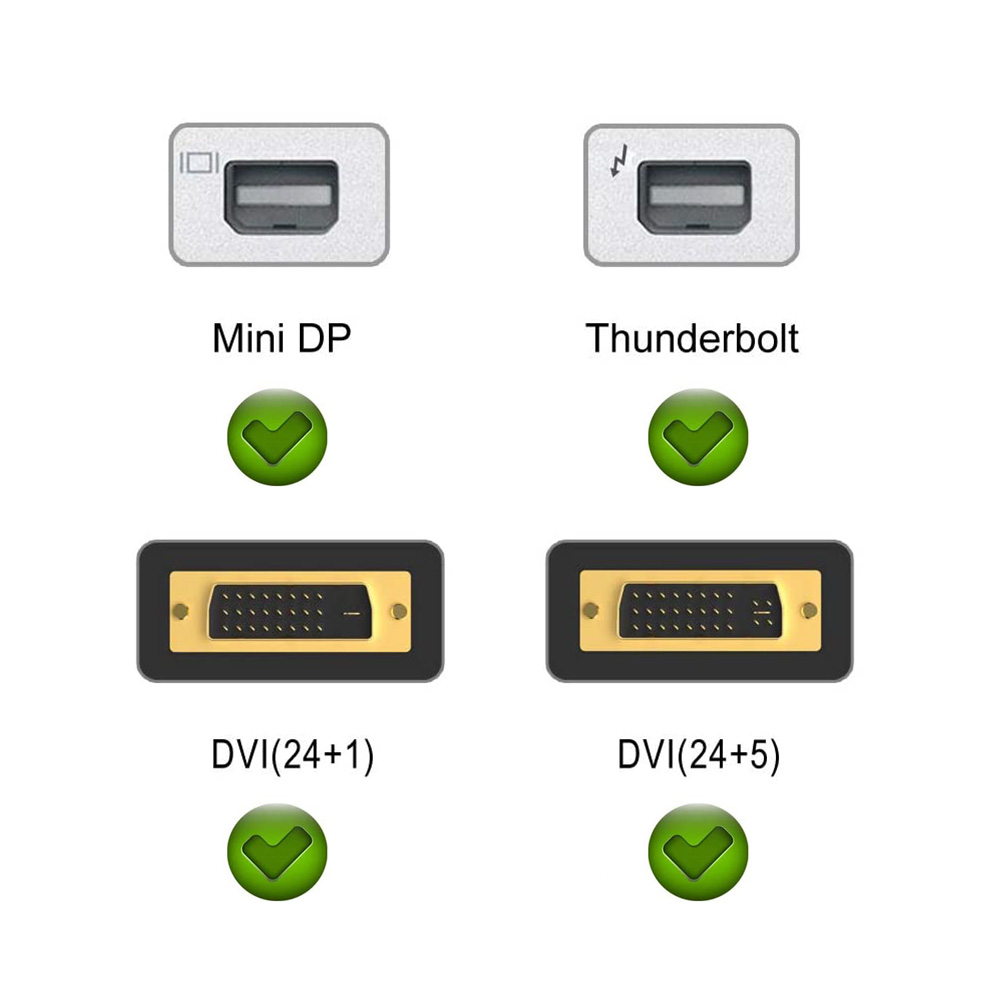

3. Support mini DisplayPort 1.1a input and DVI output;

4. The DVI interface supports video resolutions up to 1080p;

5. Support DVI interface 225MHz/2.25Gbps per channel ( 6.75Gbps all channels) bandwidth;

6. Support DVI interface 12-bit per channel (36bit all channels) deep color;

7. Support DVI 225mHZ/2.25Gbps per channel/6.75Gbps all Channel bandwidth;

8. MiniDisplayPort to DVI adapter cable realizes the function of connecting the host with MiniDisplayPort video interface to the general standard analog display, projector, LCD liquid crystal display with DVI connector;

9. Support uncompressed audio, such as: LPCM. Mini DisplayPort signal source;

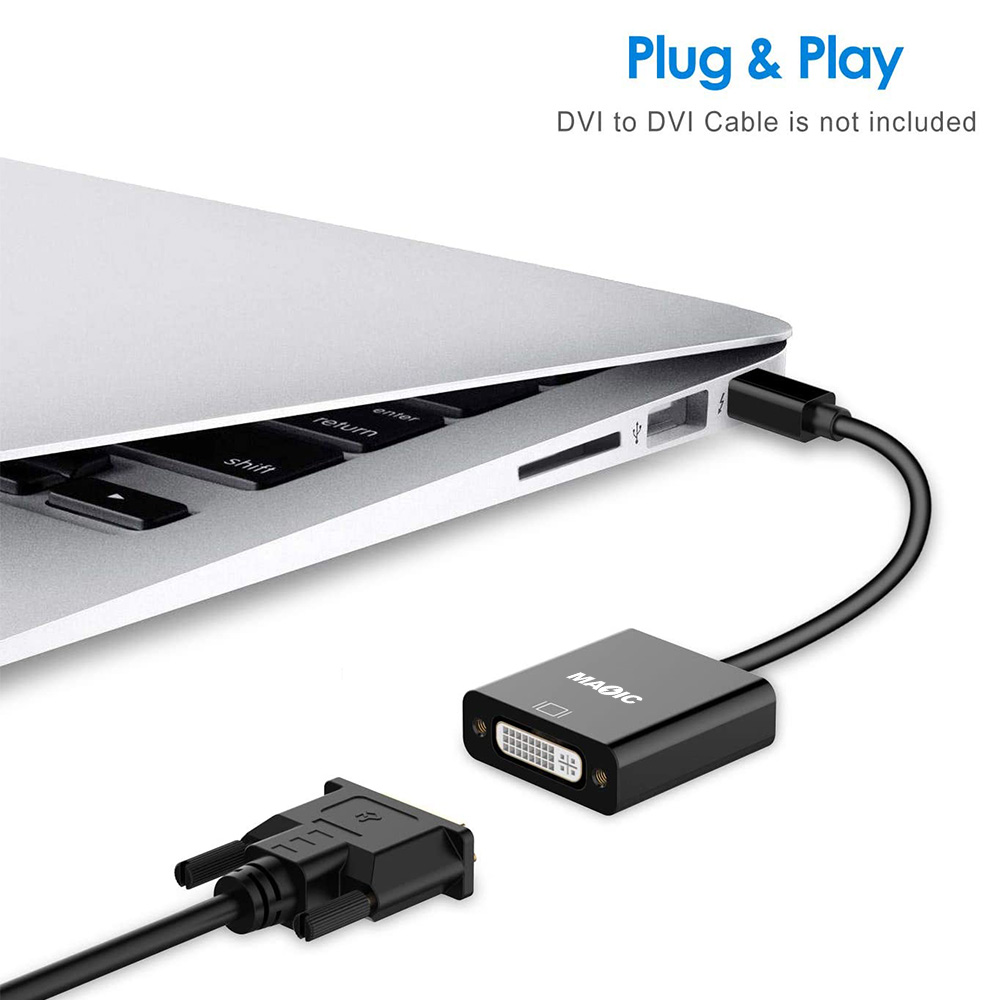

10. Perfect lossless signal, plug and play;

11. Built-in conversion chip, no external power supply required.
