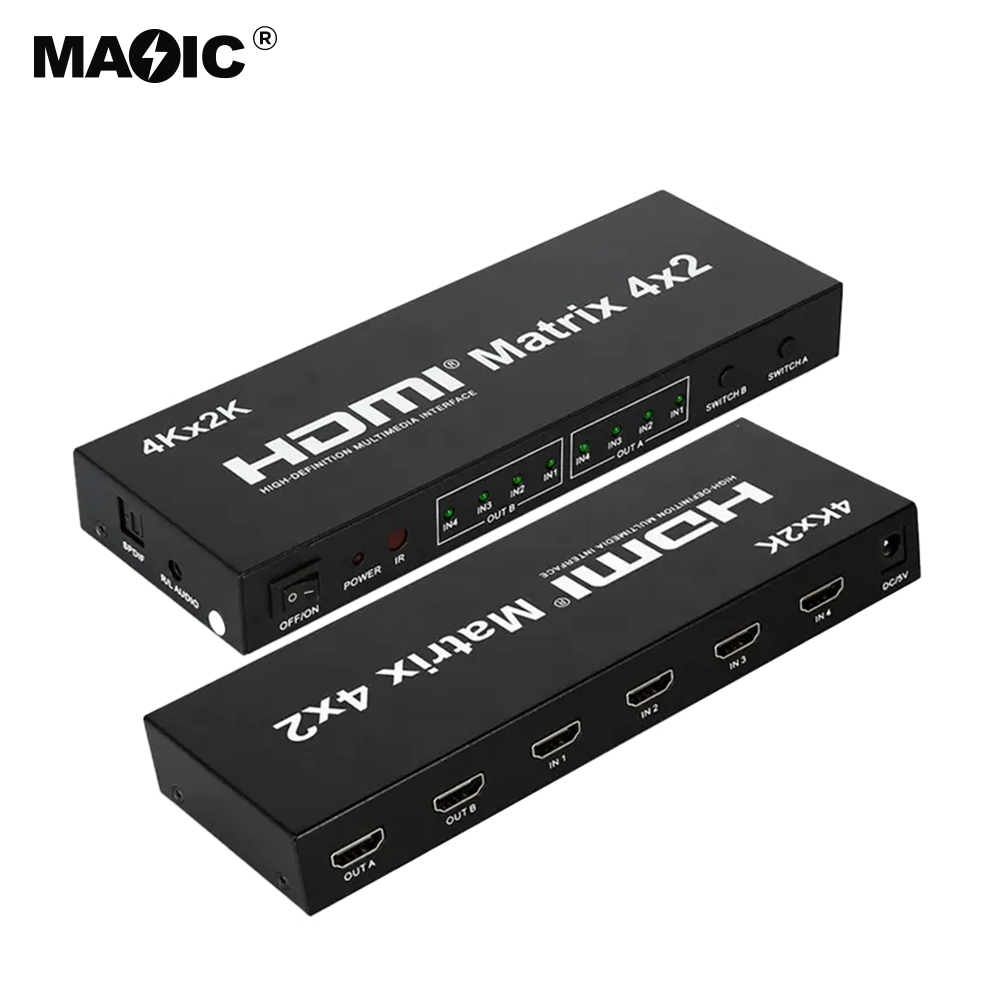

Audio Video Equipments 4 in 2 Out HDMI Switch Splitter HDMI Matrix 4K 60Hz HDMI Matrix 4×2 with Optical and 3.5mm Audio
4K 36Hz 4X2 HDMI Matrix
This upgraded 4K@60Hz HDMI matrix 4 in 2 out can freely switch or splite 4 high-definition signals on 2 displays or projectors compatible with high-definition signals, and any output port can be through optical fiber or stereo headphones Realize the independent output of audio. Ideal solution for home theater, office, school, conference room, shopping mall, hotel or museum.
HIGH RESOLUTION 4K 60Hz
Support multiple video resolutions up to 4K@60Hz, 1080P, 3D. Support 8/10/12 bit deep color, HDMI
2.0, HDCP2.2, 18Gbps data rate and broadband transmission up to 600Mhz. Support automatic resolution downgrade (only 4K resolution can be automatically reduced to 1080P, other resolutions are not supported). The monitor with 4K and the monitor with 1080P can be displayed at the same time.
2.0, HDCP2.2, 18Gbps data rate and broadband transmission up to 600Mhz. Support automatic resolution downgrade (only 4K resolution can be automatically reduced to 1080P, other resolutions are not supported). The monitor with 4K and the monitor with 1080P can be displayed at the same time.
Audio Extract
Audio format support LPCM/DTS5.1 channel/Dolby-AC3 and smart EDID management. You could set the EDID as user guide to adjust the resolution and audio format. Any input high-definition source can extract audio separately or at the same time by SPDIF or 3.5mm audio output port. The built-in infrared sensor is equipped with a convenient and intuitive remote control. You can switch the input source by the remote control or by pressing the manual button.
Widely Compatible
This 4K@60Hz 4X2 HDMI matrix contains built-in automatic equalization and amplification functions to ensure the best transmission without loss of video/audio quality. Widely compatible with most devices. Input port can connect HDMI source devices like VCD/DVD player, Blu ray players, Xbox, PS3, PS4, PS5, PC and etc. Out port can connect monitor, projector, HDTV and more.
