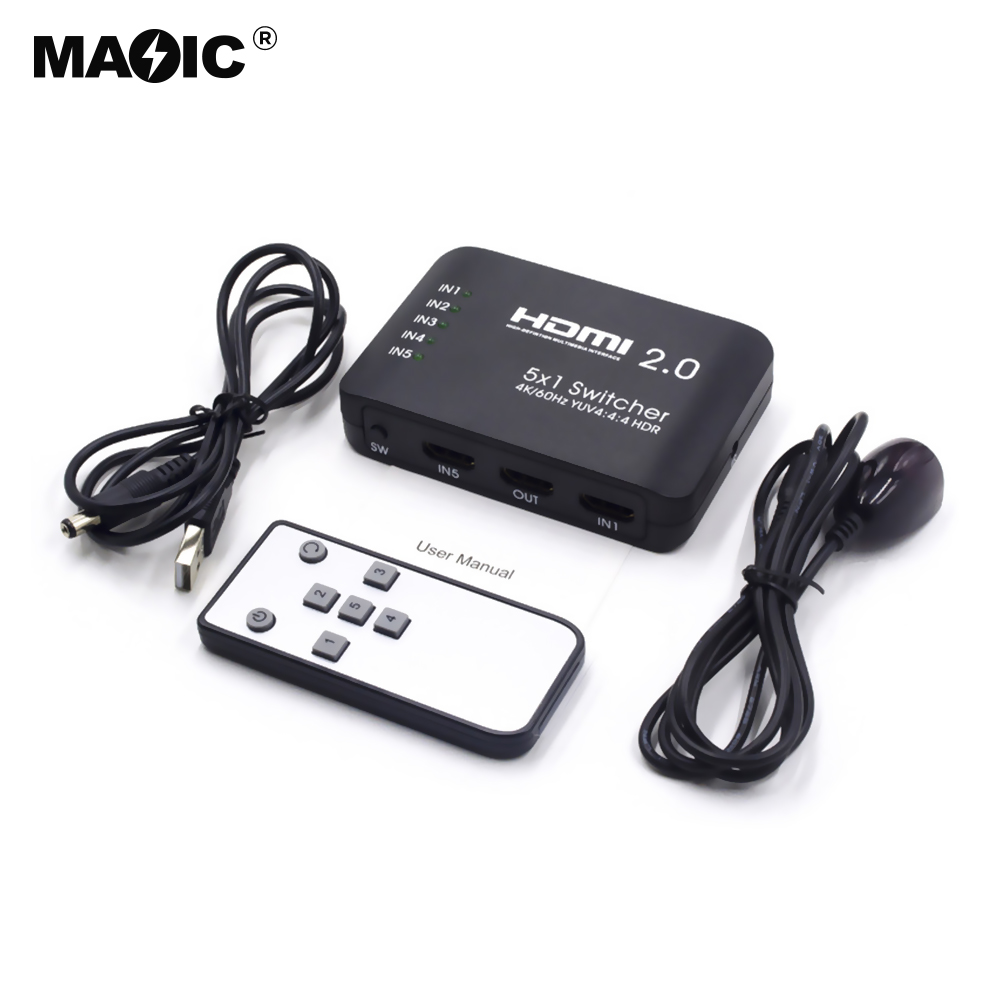

HDMI switch
1. Support 3/5 HDMI input and 1 HDMI output
2. Support HDMI 2.0/3D formate
3.Ultra-low power consumption, can be powered by USB
4.Support automatic switching
5.Support 1 key cycle switching, fast switching
6.The panel has a signal input LED indictor
Specifications:
| HDMI version | HDMI 2.0 |
| HDCP version | HDCP2.2 |
| HDMI resolution | up to 3840*2160/60Hz |
| Support video format | 8/10/12 bit deep color |
| Support audio format | DTS-H
D/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 600MHz |
| Max baud rate | 18Gbps |
| Max working current | 600mA |
| Operating Temperature range | (-15℃to +55℃) |
| Dimension (L x W x H) | 102.5×69.5×23 (mm) |
| Weight | 76g |
